My effects | GUITAR

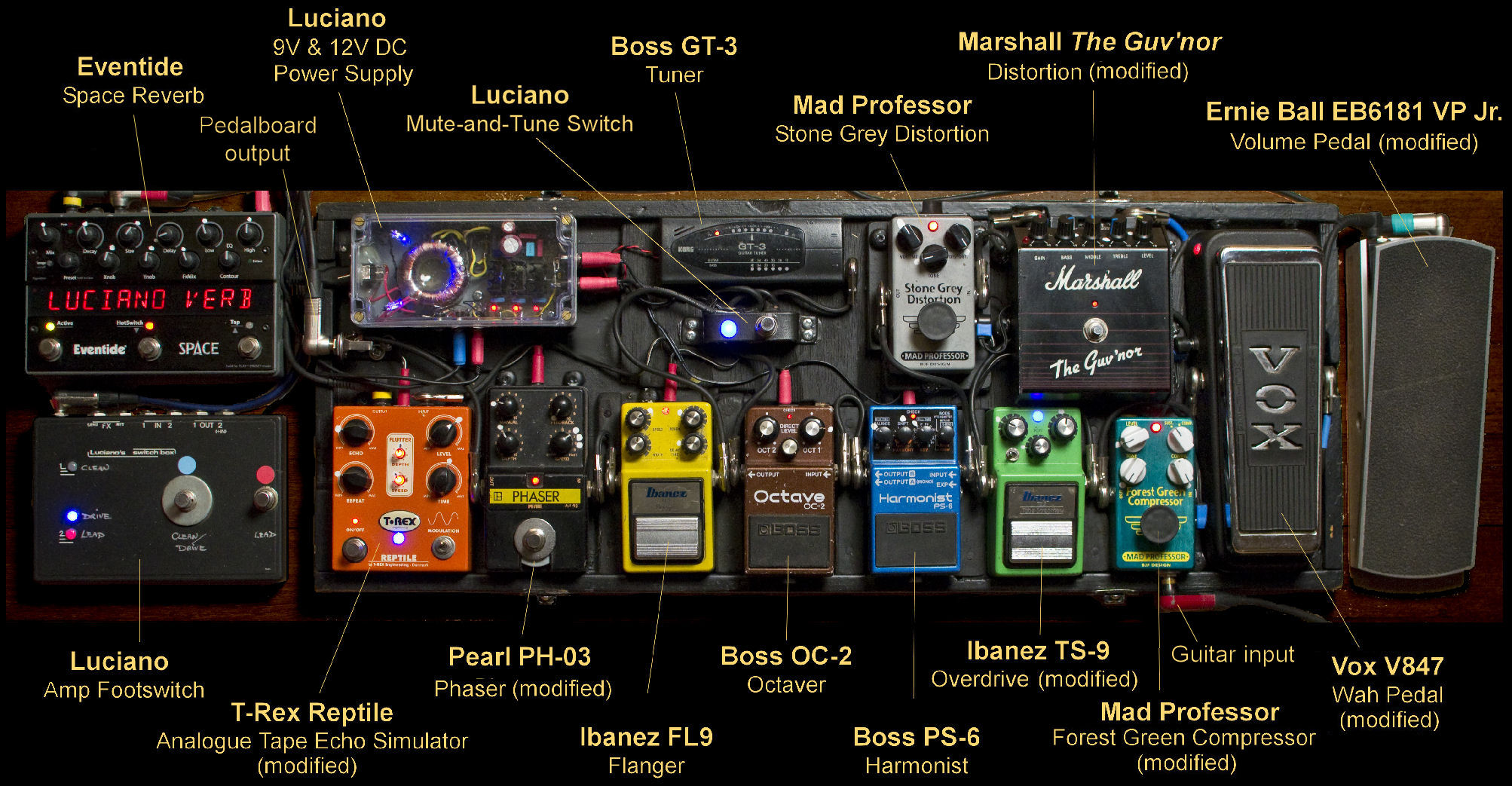

This is how my guitar effects setup looks like. The pedalboard with most of the effects in the middle, and just a few units left and right added to it. Compact, clearly situated for ease of use, and highly effective. Whatever I need, it's all right there under my feet.




The pedals explained:

Mad Professor Forest Green Compressor
Since it is not only a great working compressors/sustainer, also the first stage is a good buffer for my passive Seymour Duncan Antiquity guitar pickups. I am using this compressor in the sustainer setting, so that the attack remains fairly as original. The jack input has been moved so that the pedal fits in my pedal board and I can easilly plug in and out my guitar cable.

Vox V847 Wah
The original wah pedal, though I have added a LED to show whether it's on or not, always an issue with wah pedals.

Ibanez TS-9 Tube Screamer
The legendary overdrive, upgraded and modifications. The original smooth sounding JRC4558D opamp has been put in, some components have been exchanged with higher quality ones, and I have added some clipping circuitry combinations selectable by a switch on top. You won't find a better sounding TS-9.
It works great in combination with the drive channel of my amp just to drive and raw it up a little.

Marshall Guv'nor Overdrive/Distortion
Since I made some component upgrades I just LOVE this pedal! So great for a the more aggressive overdriven sounds with a true Marshall bite, though still smooth and very 'open'. In combination with my Luciano amp or a plexi Marshall this brings you straight to the Gary Moore sound.
My settings: Gain and Bass at 2 O'Clock, Mid at 12 O'Clock, Treble at 8 O'Clock, Level at 10 O'Clock.

Mad Professor Stone Grey Distortion
For heavy 'fluid' distorted sounds with loads of sustain. The great thing about this pedal is that it keeps the character of your guitar intact somewhat. Play it with your Strat, and with the Gain at max as I do, you will still hear a Strat.

Boss OC-2 Octave
Favourite with many bass players, I use this one for weird soloing, but also for fattening up the groove. This, for example is how I play the 'Real Mother For Ya' groove while doubling the bass player: (sample to come)

Boss PS-6 Harmonist
So nice for playing solos and doubling or tripling up the notes with those that fit the arrangement perfectly.

Pearl PH-03 Phaser
I have been having this pedal for over 25 years, and it will never leave my pedal board. So great for Lesley-ish rotary speaker sounds. The Pearl bypass circuitry is not as good as those from Boss or Ibanez, so I have modified it to True Bypass.

Ibanez FL9 Flanger
One of the greatest flangers around, I use it not too heavy so that it's still nice for soloing.

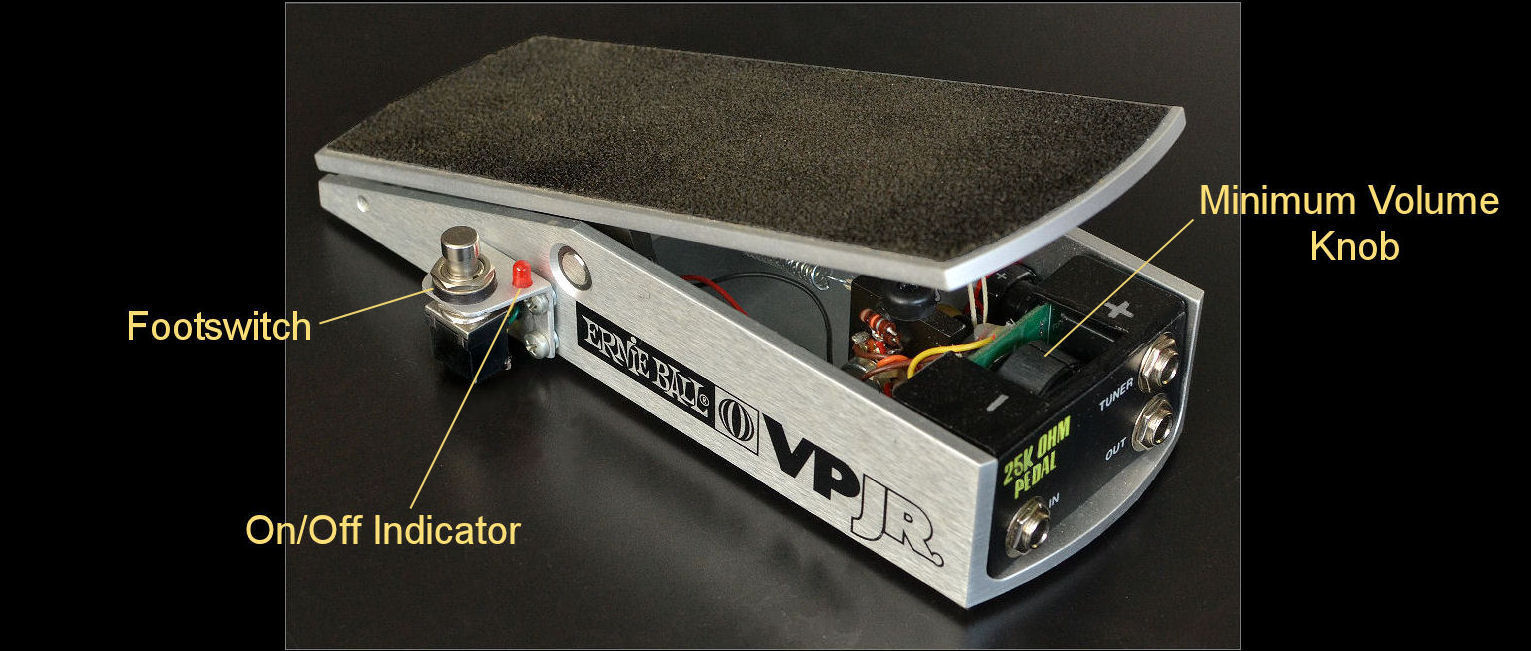

Ernie Ball EB 6181 VP Jr. Volume Pedal
A perfect size pedal with an very nice feel to it. I have added a potmeter for Minimum Volume Adjustment, which is inside the pedal and reachable from the front. This is my standard setting, with the pedal at 0% for normal volume suited for chords and riffs, and up to 100% for soloing which is effectively something like 15dB louder. I fixed a footswitch with LED on/off indicator on the side so that I can instantly switch the pedal to the original configuration (from 0% to 100% volume) which I use for nice swell sounds. The added options give me perfect control over my volume right there under my foot, whatever the song needs.



T-Rex Reptile Tape Delay Simulator
Such a nice smooth delay, with a slight filtering and modulation in the delayed repetitions, just like how it should to be keep it all very natural. Being part of my basic sound, I have it switched on most of the time with chords and solos to make my sound spatial in a subtle way.
I have replaced the modulation footswitch by a normal switch to avoid switching it off accidentally, and added a blue LED to show very clearly when the pedal is on.

Eventide Space
Being highly inspired by the sound of Coldplay guitarist Jonny Buckland (listen to the 2nd half of this live version of Trouble). So I use this thing for only one setting: the awesome Blackhole Space Reverb!

Luciano Power Supply
I built this one myself together with my pedalboard, it's a multiple regulated 9V and 12V power supply unit for powering all my effects units plus amp switch on the stage floor. By fully seperated power supply regulator stages the risk of digital units contaminating the supply of analog pedals is avoided.

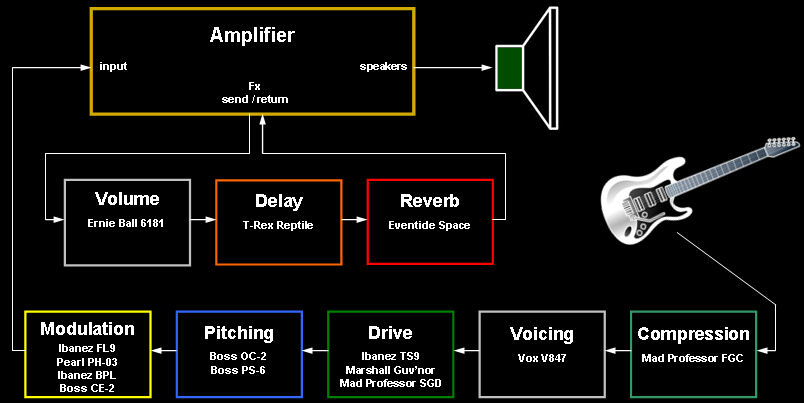

Effects routing configuration

This is how I have configured the routing of my effects in order to have the optimum order of signal processing in combination with my Marshall/Luciano tube amp:


Most of the pedals are sitting between my guitar and the pre-amp of my amplifier. But since I often use a bit of thickening from my pre-amp drive channel it is highly important to have the Delay behind that drive channel in order to have the delay repetitions sound as thick as the original. So therefor it needs to sit in the effects loop (with a -20dB send attenuation circuitry). The same applies to my volume pedal, which, for swell sounds and cut/boost purposes, needs to sit as close as possible towards the tube power amp, though, in front of the Delay for the swell effects. The reverb perfectly sits behind the Delay pedal.




My effects | BASS

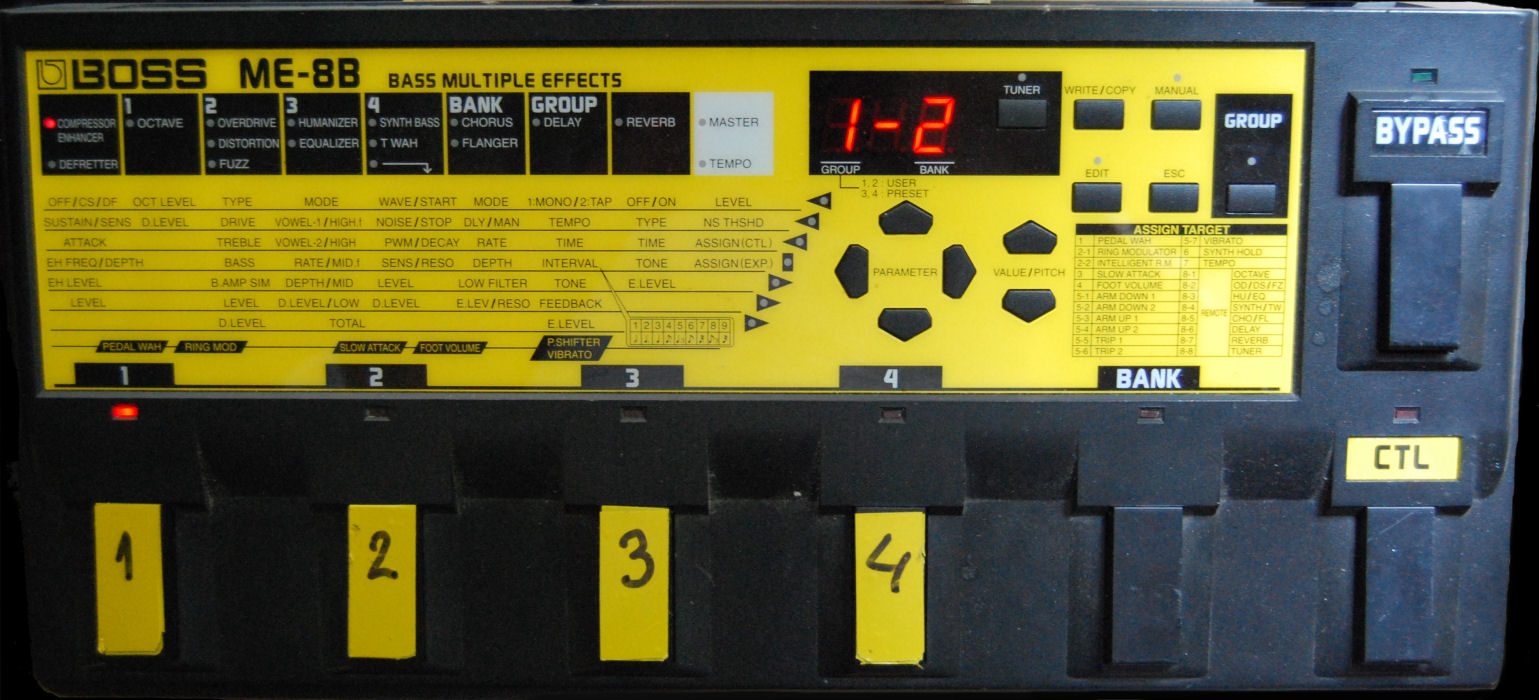

Boss ME-8B


For Bass Synth effects and a little bit compression I use my Boss ME-8B. It's cool, funky and providing me the range of sounds I had been seaking since listening to Jamiroquai bass player Stuart Zender.
